Layout Parameters

corebreakout allows for processing core images with different layouts, and provides several different methods for finding and cropping the bounding boxes of individual columns within an image.

Layout parameters are used within the CoreSegmenter.segment() method.

Any and all default parameters can be overridden and updated in the CoreSegmenter constructor, or in any single call to the segment() method. In either case, pass any new parameters in a dict as the layout_params keyword argument.

The default parameters reflect the characteristics of the BGS dataset on which the example model is trained:

# corebreakout/defaults.py

LAYOUT_PARAMS = {
  'order' : 't2b',
  'orientation' : 'l2r',
  'col_height' : 1.0,
  'col_class' : 'col',
  'endpts' : 'tray'
}

DEVELOPMENT NOTE: The only allowed values for order and orientation are 't2b' and 'l2r'. This covers all conventional core image layouts that we are aware of, but we would consider adding 'b2t' and 'r2l' if provided with use-cases. If you have one, please open an issue (or submit a pull request :-).

order and orientation

The 'order' parameter specifies the depth order by which to sort the set of columns detected in an image:

  • 't2b' implies that columns are laid out horizontally, with the uppermost column coming first in order of depth.
  • 'l2r' implies that columns are laid out vertically, with the leftmost column coming first in order of depth.

The 'orientation' parameter specifies the depth orientation of columns. This should be the converse of 'order':

  • 't2b' implies that the top of a (vertical) column is toward the top of the image.
  • 'l2r' implies that the top of a (horizontal) column is toward the left side of the image.

Since it is required that order be one of these options and orientation be the other, requiring both is redundant. However, making both of them explicit improves code readability, and will make it easier to add other options should we choose to do so in future releases.

col_height

The 'col_height' parameter specifies the height in depth units (usually meters or feet) of individual (and complete) columns.

This value is used in conjunction with the depth_range positional argument to find the number of expected columns in an image when calling CoreSegmenter.segment(img, depth_range, **kwargs).

col_class

The name of the class representing core sample columns in the M-RCNN model used by CoreSegmenter instance.

endpts

The 'endpts' parameter determines the method for making sure that before cropping, the top and base of partial columns are extended to locations that are approximately 'col_height' apart. Different options may work better or worse depending on how clean the samples are and how consistent the layout is.

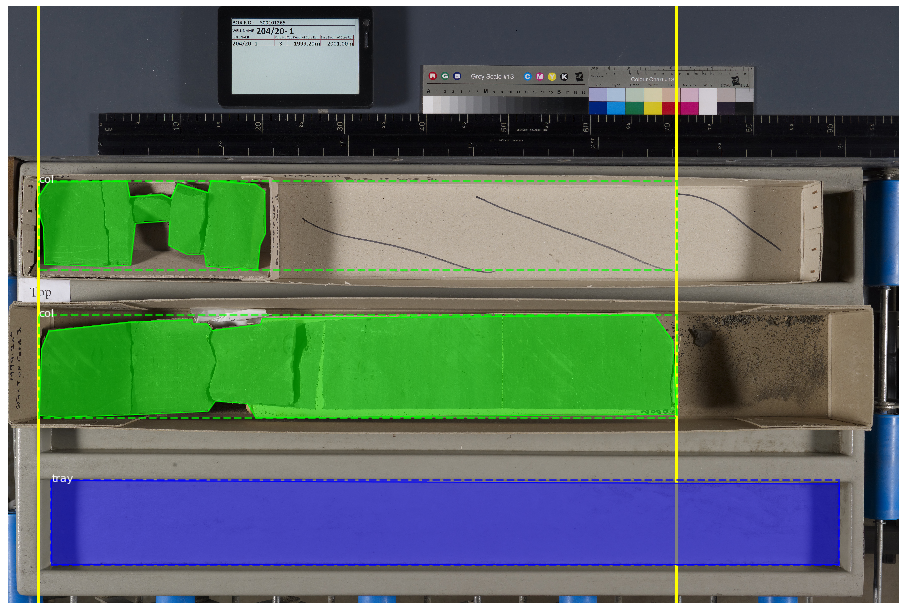

Predicted masks tend to be subsets of the ‘true’ masks, so short columns are extended, but longer columns are NOT shortened. You can see this in the example images below, where the computed minimal endpoint locations are shown as solid yellow lines, and the resulting column bounding boxes are shown as green dashed lines.

Allowed values of 'endpts' include:

  • The name of a class (e.g., 'tray')
    • Results in columns being extended to the top and base of the strongest detection of this class
    • Must be found in the class_names attribute of the CoreSegmenter instance
    • Typical choices would be empty trays, or the measuring sticks commonly placed next to boxes of core


  • One of the keywords 'auto' or 'auto_all'
    • Results in columns being extended to the min/max coordinates of a set of detected objects
    • 'auto' will use only objects of 'col_class' as the relevant set (e.g., all 'col' detections – first example below)
    • 'auto_all' will use all objects in the image (e.g., all 'col' and 'tray' detections – second example below)



  • A 2-tuple of explicit integer endpoint coordinates (e.g., (100, 6900))
    • Results in columns being extended to at least these min/max coordinates
