Creating Datasets

Using labelme

The recommended way to add a new set of labeled training images is to annotate them using wkentaro/labelme. The labelme GUI allows the user to draw any number of labeled polygons on an image, and saves the labels and coordinates in a JSON annotation file.

You can easily install labelme with pip, and then open our small test dataset:

$ pip install labelme
$ labelme tests/data/two_image_dataset

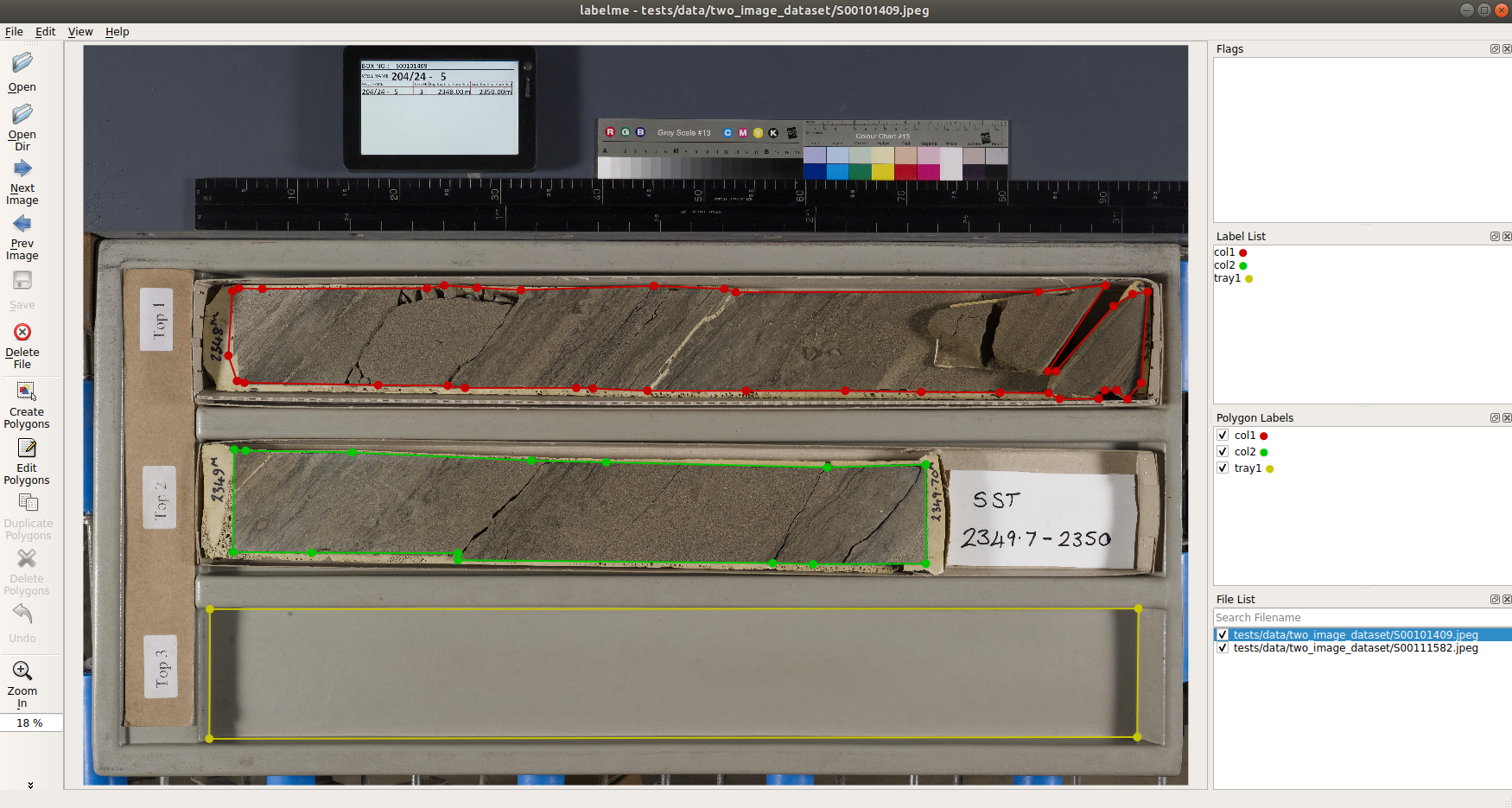

This should open a window that looks like this:


New polygons can be drawn by clicking Create Polygons and then clicking points on the image to add vertices. When you get back around to the starting vertex to close the loop of points and create a polygon, labelme will ask you to assign it a text label.

Unique text labels are aggregated on the right side, and the individual polygons shown in the image are colored and listed with their assigned labels. They happen to be the same in this example, but there could be more labels in the Label List than polygons in the Polygon Labels list for any given image in the directory.

When you finish adding polygons, click the Save button to export the annotations as a .json file, which by default will save to the current directory.

The File List shows images in the currently directory, with the checkbox indicating whether an annotation has been saved for that file yet. You can use the Next Image and Previous Image buttons to traverse through the images (and corresponding annotations) in the directory.

Inspect Our Annotations

For a more hands-on exploration of annotation structure and the Dataset API, see notebooks/inspect_dataset.py

How to Name Things

As you can see above, our text labels for individual objects have the form <class><number>. The class refers to a general object type, the number differentiates between individual instances of that class within an image. This isn’t the only possible naming scheme, but it’s the one you should use if you want your annotations to be compatible with our PolygonDataset implementation.

In our data, we use two classes, col and tray, to label two different types of objects:

  • col is for columns of core material – the individual objects that we want to segment, crop, and stack on top of each other.
  • tray is for empty trays, which for our data are the most reliable “measuring stick” to use for defining the “top” and “base” positions of columns within an image

The first type of object is required – the whole purpose of this workflow is to segment core columns, so you will need to at least label those.

The second type of object is optional – using another object (empty tray, measuring stick, etc.) to define top and base positions of columns is one option for the endpts setting in Layout Parameters, but there are others which do not require the existence of any objects other than core columns.

If you’re making your own dataset, your class names can be whatever you want them to be. You just need at least some name for core columns, and to keep general consistency between:

  • The PolygonDataset (s) you train your model with, which use the annotations you saved.
  • The kwargs you provide when instantiating a CoreSegmenter. Namely:
    • The classes argument (it should be the same as for PolygonDataset)
    • The col_class (and possibly endpts) fields of the layout_params

If you decide to use different class names (or layout parameters), we’d recommend changing the CLASSES and LAYOUT_PARAMS in defaults.py so that you don’t have to specify them as often.

Summary of Guidelines

To be able to use the built-in corebreakout.datasets.PolygonDataset class with your training data, you want to adhere to these guidelines:

  • Save <fname>.json annotations in a flat directory with corresponding <fname>.jpeg files (this is labelme’s default behavior)
  • You may label any number of classes. You will have to supply a list of these classes to the PolygonDataset and CoreSegmenter constructors, or modify defaults.CLASSES.
    • At a minimum, you will want some class name to represent columns of core. We call ours 'col', but it doesn’t matter what you want to call it if you’re using your own data.
    • You may also create a class (e.g., 'tray') for any objects that consistently demarcate the top and base positions of core columns better than the columns themselves.
  • Different instances of the same class should begin with the class name and be differentiated afterward (e.g., col1, col2, col3)
    • The corollary is that no class name can be a substring of any other class name (e.g., col, col_tray would not be allowed)
    • Multiple polygons may belong to a single instance (for example, if there’s a large gap in the middle of a column)
  • After annotating images, split into sibling 'train' and 'test' subdirectories

Note: We’ve found that the point of diminishing returns happens somewhere in the range of 20-30 training images, which probably corresponds to 30-50 column instances for this dataset. YMMV.

After compiling the annotations, you may wish to modify defaults.DATASET_DIR to avoid need to explicitly specify the data location.

corebreakout.datasets.PolygonDataset

This is a subclass of mrcnn.utils.Dataset for instance segmentation annotations in the default JSON format of wkentaro/labelme.

Usage

from corebreakout.datasets import PolygonDataset

data_dir = defaults.DEFAULT_DATA_DIR    # parent of any separate annotation data directories
subset = 'train'                        # which subdirectory to read from

dataset = PolygonDataset(classes=defaults.DEFAULT_CLASSES)

# Collect all of the requied ID + path information
dataset.collect_annotated_images(data_dir, subset)

# Set all of the attrs required for use
dataset.prepare()

print(dataset)

Two Dataset objects (train, test) are required in calls to model.train(...), which is why we split them into separate directories.

Subclassing mrcnn.utils.Dataset

If you want to use a different annotation format, you can inherit from the base mrcnn.utils.Dataset class.

You will need to write some user-called method to collect file information:

  • e.g., collect_annotated_images(data_dir, subset): Register image_id, path, and ann_path for each (image, annotation) file pair in <data_dir>/<subset> directory.

And then override at least these two methods:

  • load_mask(image_id): Given an image_id, load (and compute, if necessary) the corresponding mask. For an with N objects (not including the background), the return value from this function should be (mask, class_ids), where mask is boolean array of shape (H,W,N) and class_ids is a 1D integer array of size N with one class_id for each channel in mask.
  • image_reference(image_id): Return the path of an image, a link to it, or some other unique property to help in looking it up or debugging it.
